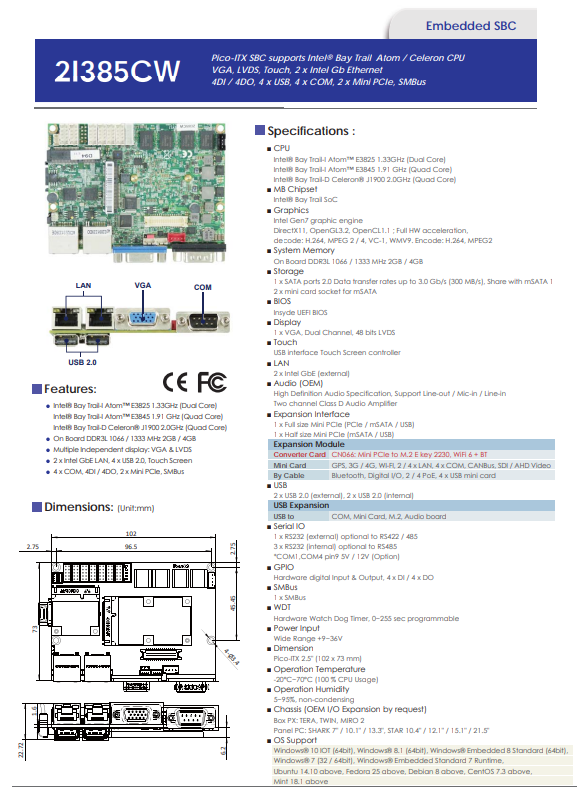

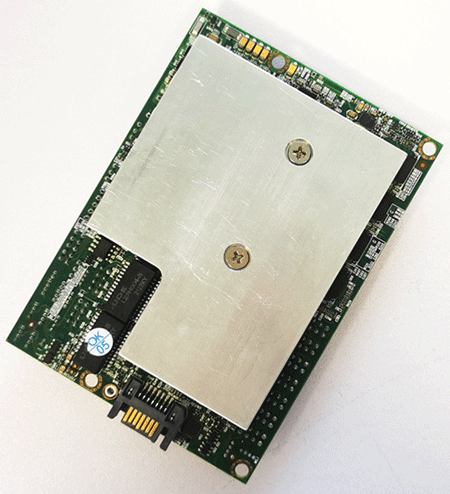

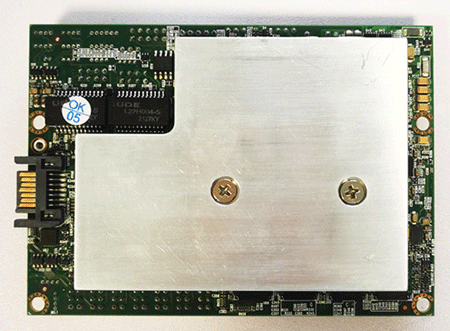

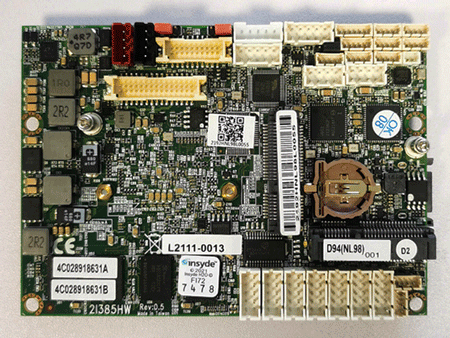

2I385CW Pico-ITX SBC supports Intel® Bay Trail Atom / Celeron CPUVGA, LVDS, Touch, 2 x Intel Gb Ethernet4DI / 4DO, 4 x USB, 4 x COM, 2 x Mini PCIe, SMBus

产品分类：CPU主板
1、Intel® Bay Trail-I Atom™ E3825 1.33GHz (Dual Core)
Intel® Bay Trail-I Atom™ E3845 1.91 GHz (Quad Core)
Intel® Bay Trail-D Celeron® J1900 2.0GHz (Quad Core)
2、On Board DDR3L 1066 / 1333 MHz 2GB / 4GB
3、Multiple Independent display: VGA & LVDS
4、2 x Intel GbE LAN, 4 x USB 2.0, Touch Screen
5、4 x COM, 4DI / 4DO, 2 x Mini PCIe, SMBus
