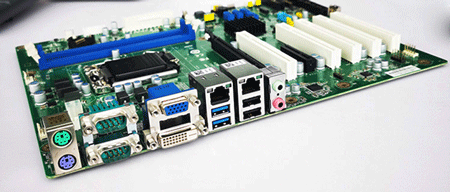

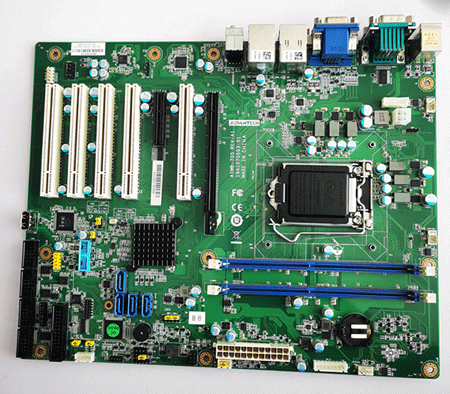

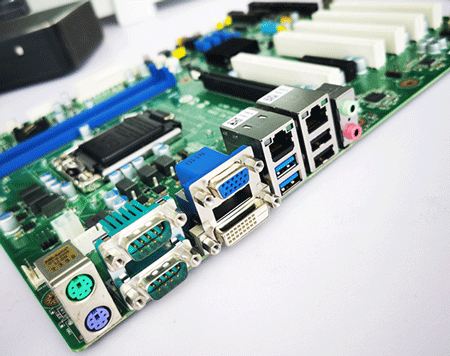

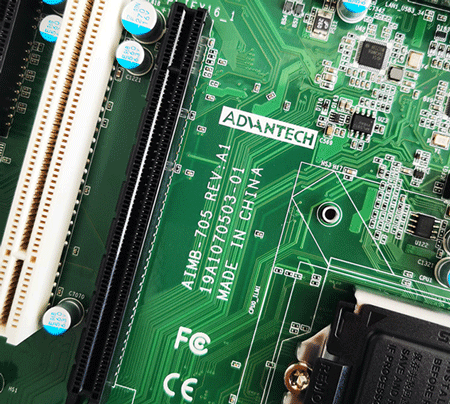

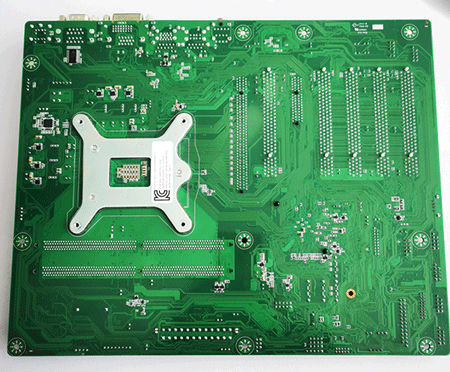

AIMB-705 REV:A1 19A1070503-01 LGA1151 6th/7th Generation Intel® Core™i7/i5/i3/Pentium®/Celeron® ATX with DVI/VGA, DDR4, SATA III, USB 3.0 & 6 COMs

产品分类：工业级母板
1、Intel第6代Core i7/i5/i3/pentium 处理器
2、双通道(Non-ECC) DDR4 1866/2133，高达32GB
3、支持VGA与DVI显示
4、支持SATA3.0, USB3.0, 双GbEs
5、支持5个RS-232和1个RS-232/422/485串联端口
6、1个PCIe x16 (Gen3)和1个PCIe x4 (Gen2),和5个PCI扩展槽
