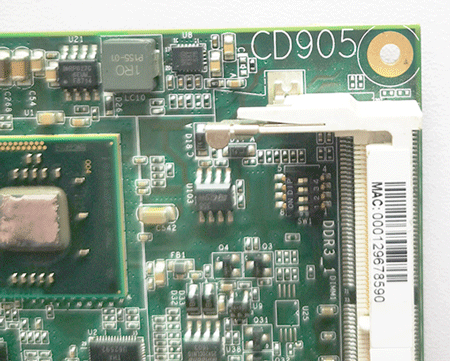

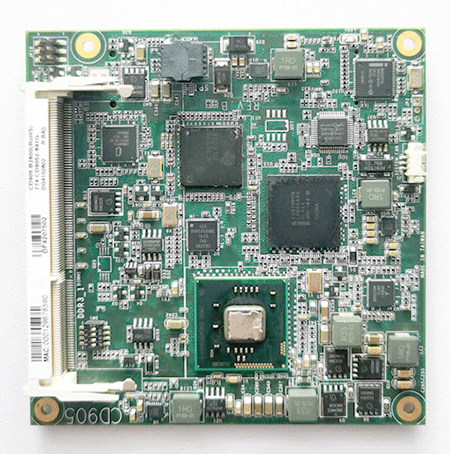

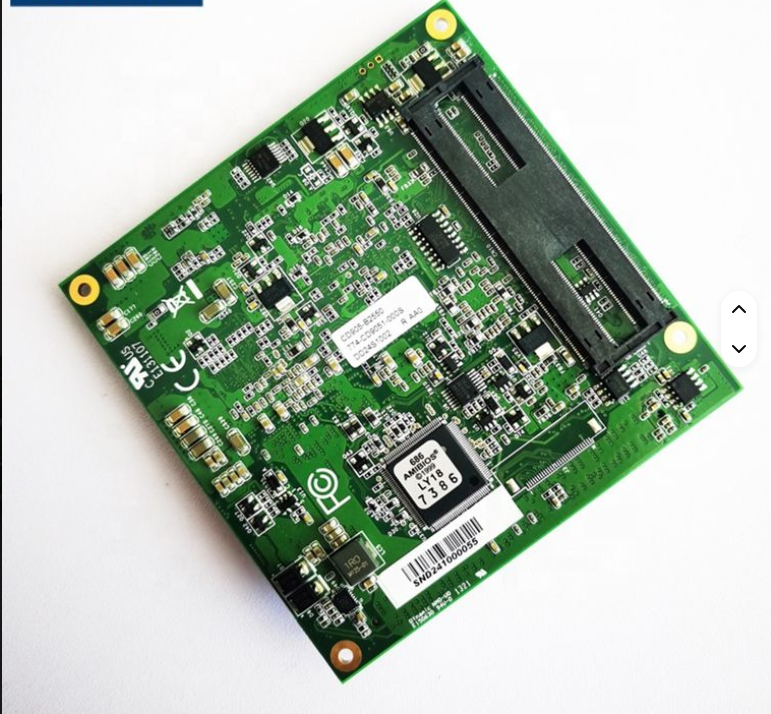

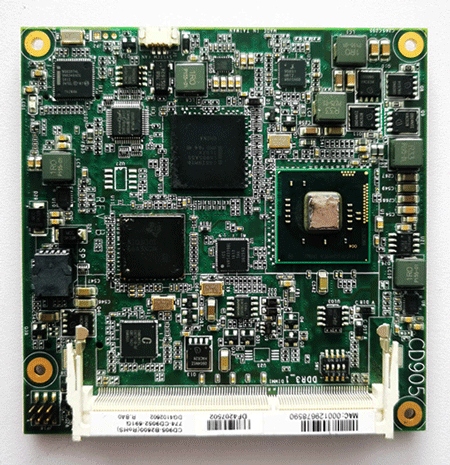

CD905 CD905-B2550 E131107 774-CD9051-000S DD24S1002主板中央处理器

产品分类：工业级母板

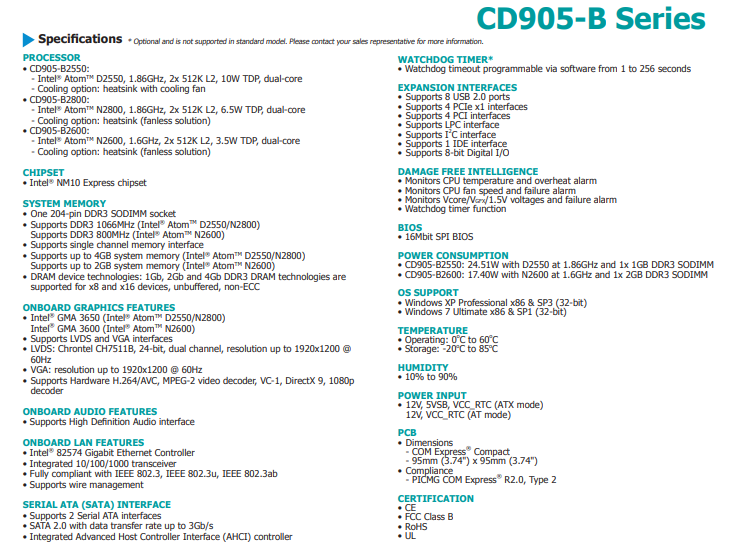

MEMORY 1 DDR3 SODIMM up to 4GB (-B2550/-B2800)
1 DDR3 SODIMM up to 2GB (-B2600)
EXPANSION 4 PCIe x1, 4 PCI
1LPC, 1 I2C, 1 IDE
1VGA, 1 LVDS
8 USB 2.02
SATA 2.0
8-bit DIO
LAN 1LAN
DIMENSIONS COM Express® R2.0 Compact, Type 2
95mm x 95mm (3.74" x 3.74")
