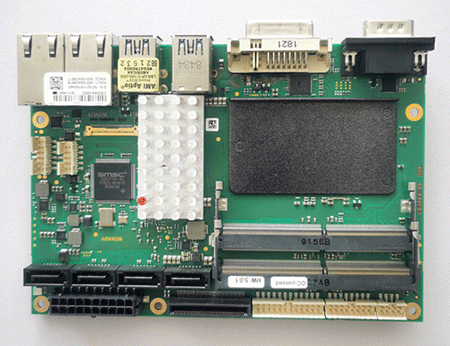

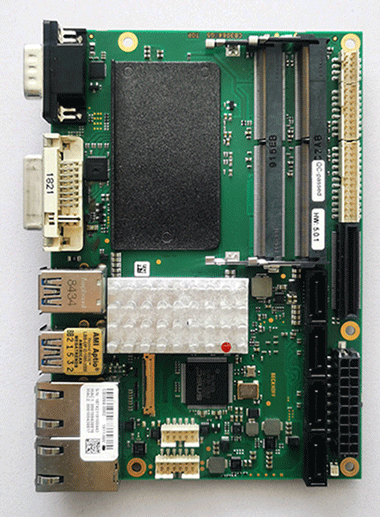

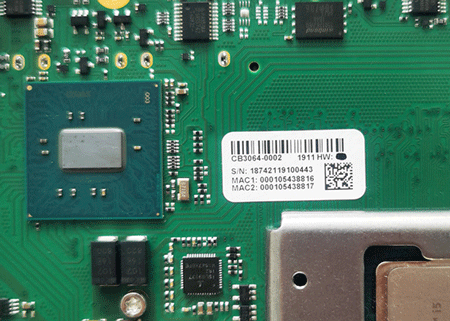

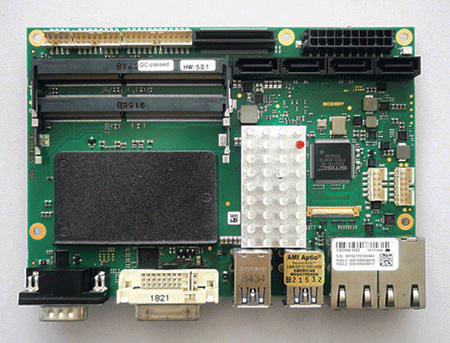

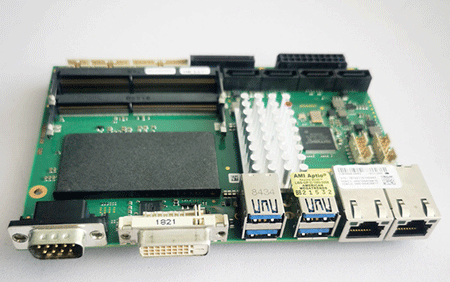

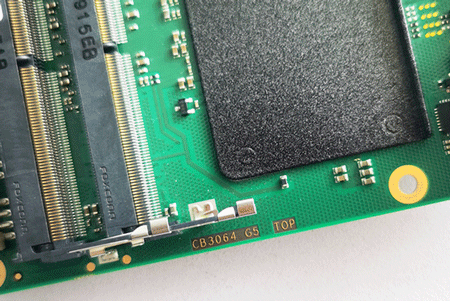

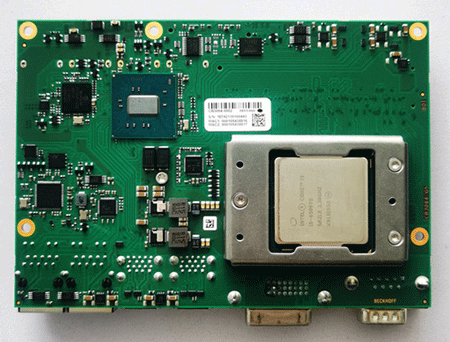

CB3064 G5 CB3064-0002 1911 S/N:18742119100443 The CB3064 is a highly complex 3,5-inch board which incorporates complete motherboard functionality.The motherboard is based on Intel®'s Q170 chipset and equipped with an Intel® Core™, Pentium™ orCeleron™ processor of the Skylake-S family.

产品分类：COMe模块

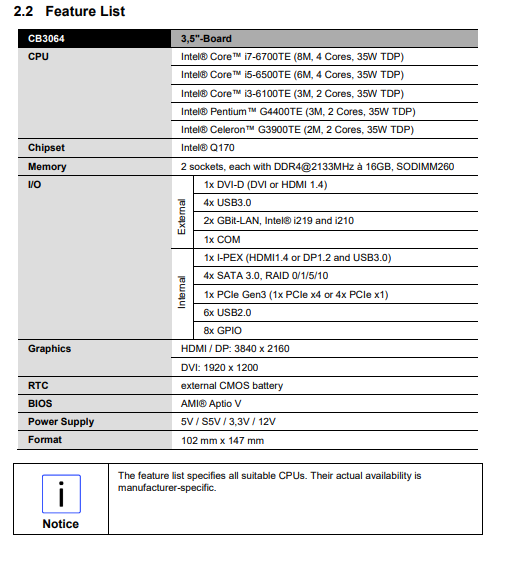

Such processors are optimized for real-time systems with a low power consumption, while at the sametime providing state-of-the-art computing performance and a huge I/O flexibilty.Modern low voltage DDR4 technology provides top-notch memory performance, accomodating up to 32GByte of RAM (DDR4-2133) via SO-DIMM260. It also provides a PCI-Express bus (via a 2x40-pincustom connector, configurable as one x4 or four x1) and additional peripheral devices such as a serialinterface, two Gigabit Ethernet interfaces (LAN), four SATA channels (offering up to 6Gb/s), eleven USBchannels, DVI/HDMI, and DisplayPort available on a 30-pin I-PEX connector.
