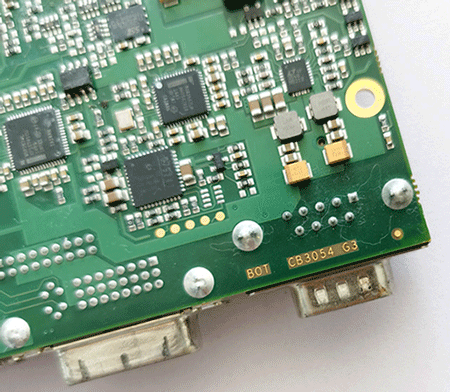

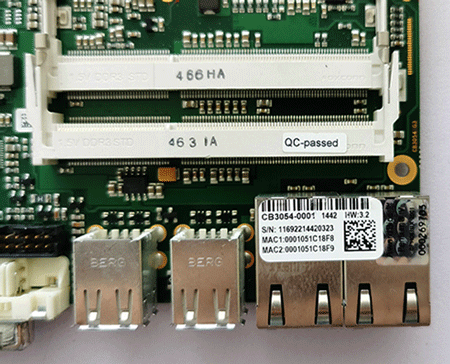

CB3054 G3 CB3054-0001 1442 HW:3.2 S/N:11692214420323 BOT CB3054 G3

产品分类：COMe模块

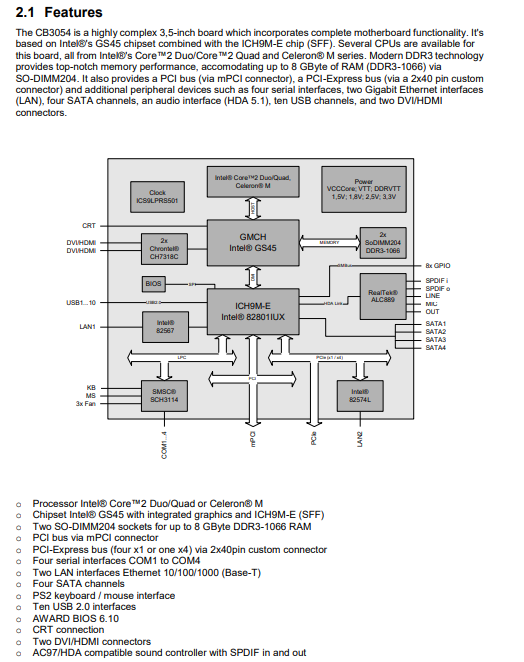

1、Processor Intel® Core™2 Duo/Quad or Celeron® Mo
2、Chipset Intel® GS45 with integrated graphics and ICH9M-E (SFF)o
3、Two SO-DIMM204 sockets for up to 8 GByte DDR3-1066 RAMo
4、PCI bus via mPCI connectoro
5、PCI-Express bus (four x1 or one x4) via 2x40pin custom connectoro
6、 Four serial interfaces COM1 to COM4o
7、Two LAN interfaces Ethernet 10/100/1000 (Base-T)o
8、 Four SATA channelso
9、 PS2 keyboard / mouse interfaceo
10、Ten USB 2.0 interfaceso
11、AWARD BIOS 6.10o
12、CRT connectiono
13、Two DVI/HDMI connectorso
14、 AC97/HDA compatible sound controller with SPDIF in and out
15、RTC with external CMOS batteryo
16、 5V supplyo
17、Format: 102 mm x 147 mm
