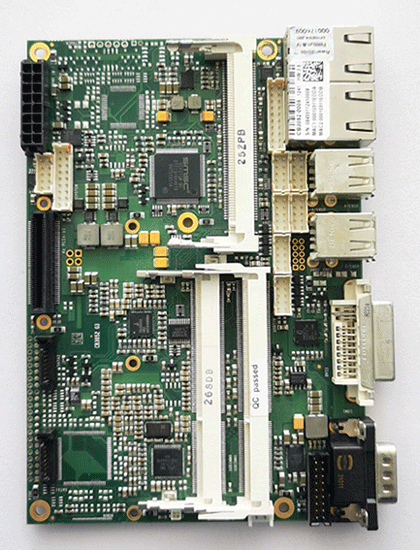

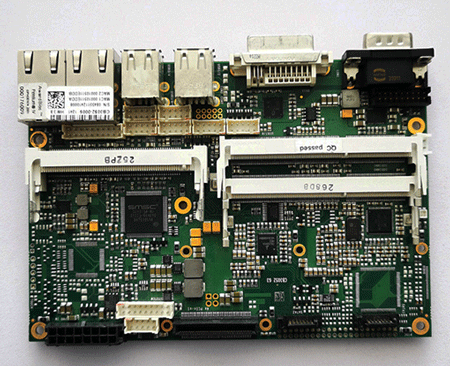

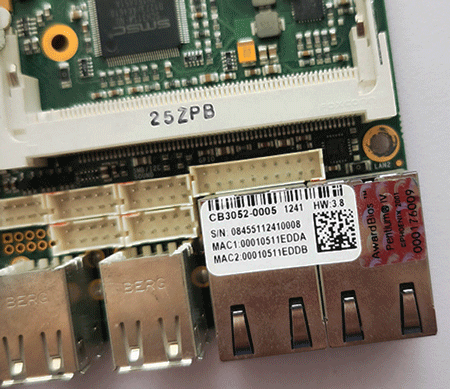

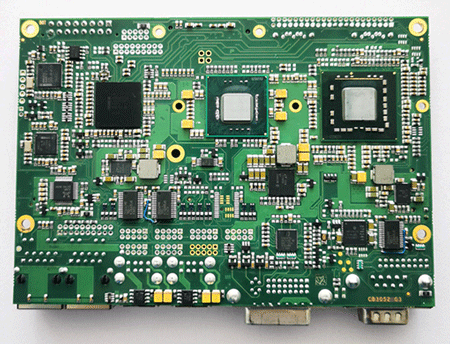

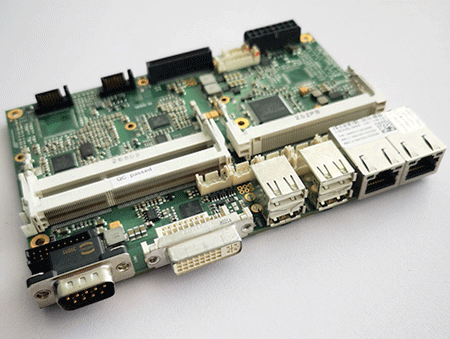

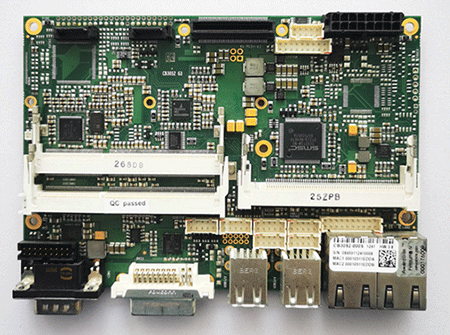

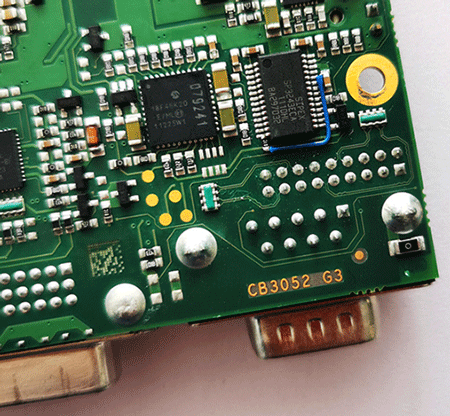

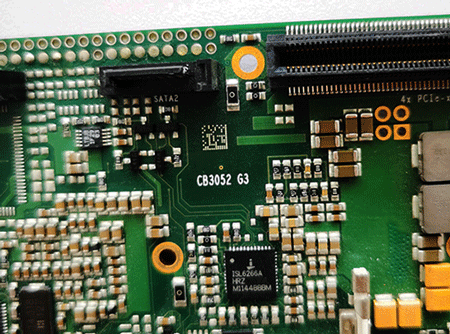

CB3050-005 1241 HW:3.8 S/N:08455112410008 CB3050 G3 CB3052 G3 CB3052-0005工业主板i3 i5 i7中央处理器板中央处理器模块

产品分类：COMe模块

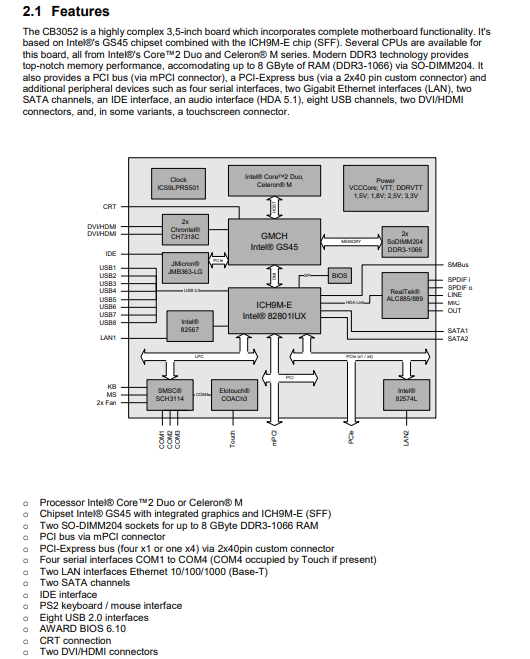

1、Processor Intel® Core™2 Duo or Celeron® Mo
2、Chipset Intel® GS45 with integrated graphics and ICH9M-E (SFF)o
3、Two SO-DIMM204 sockets for up to 8 GByte DDR3-1066 RAMo
4、PCI bus via mPCI connectoro
5、PCI-Express bus (four x1 or one x4) via 2x40pin custom connectoro
6、Four serial interfaces COM1 to COM4 (COM4 occupied by Touch if present)o
7、Two LAN interfaces Ethernet 10/100/1000 (Base-T)o
8、Two SATA channels
9、IDE interfaceo
10、PS2 keyboard / mouse interface
11、Eight USB 2.0 interfaceso
12、 AWARD BIOS 6.10o
13、 CRT connectiono
14、Two DVI/HDMI connectors
15、AC97/HDA compatible sound controller with SPDIF in and out
16、RTC with external CMOS battery
17、5V supply
18、Touchscreen connection (in some variants)
19、Format: 102 mm x 147 mm
